Pod Isolation Actions

Overview

Pod isolation actions let you respond to a threat directly from RAD Security — without leaving the platform and without kubectl access to the cluster. When you create an action, RAD Security queues it for the cluster, and the rad-sync plugin already running in that cluster picks it up and applies the change through the Kubernetes API. Three action types are available:

Action type	What it does	Kubernetes operation
`terminate_pod`	Permanently deletes the target pod	`DELETE` on `v1/pods`
`disable_outbound`	Quarantines the pod: applies quarantine labels and creates a deny-all-egress `NetworkPolicy`	`PATCH` on `v1/pods` + `CREATE` on `networking.k8s.io/v1/networkpolicies`
`label_pod`	Applies labels to the target pod	Merge-patch on `v1/pods`

Actions are available both from the Actions tab of a cluster in the UI and from the Cluster Actions API. Every action — whichever way it was created — is recorded with its author, timestamps, and execution result.

Actions target pods. To isolate a workload permanently, address the controller (Deployment, StatefulSet, DaemonSet) as well — see Terminate Pod.

Prerequisites

The cluster is connected to RAD Security and the sync plugin is running and healthy. The plugin status is shown on the Overview tab of the cluster details panel. See Kubernetes Setup and rad-sync.

The rad-sync ClusterRole grants the permissions the actions require. The default Helm chart already includes them:

- apiGroups: [ "" ]
  resources: [ "pods", "pods/log" ]
  verbs: [ "get", "list", "delete", "update", "patch" ]
- apiGroups: [ "networking.k8s.io" ]
  resources: [ "networkpolicies" ]
  verbs: [ "create", "update", "get" ]

Your RAD Security user or access key has modify permission on the account. Listing and viewing actions requires read permission.

disable_outbound creates a Kubernetes NetworkPolicy. NetworkPolicies are only enforced if your cluster runs a CNI that implements them (Calico, Cilium, Weave Net, and most managed CNIs). With a CNI that ignores NetworkPolicies, the object is created successfully and the action reports Executed, but traffic is not blocked.

How execution works

The action is created

You submit an action from the UI or the API. RAD Security stores it with status Pending and returns an action ID in the form ca-<ksuid>.

rad-sync picks it up

The rad-sync plugin in the target cluster polls RAD Security for pending work. The default poll interval is 60 seconds (sync-interval), so an action typically starts executing within a minute.

The change is applied

rad-sync applies the operation with the Kubernetes API using the cluster’s own service account — RAD Security never connects inbound to your cluster.

The result is reported back

rad-sync reports the outcome, and the action moves to Executed or Failed. The result field carries the message shown in the UI, for example Resource default/nginx-new has been deleted.

Failures are retried

A failing action is retried on each sync cycle up to 5 times (max-sync-retries). After that it is marked Failed with a result of Max retries reached: 5. Last error: ....

Action statuses

Status	Meaning
`Pending`	Queued; not yet picked up or still being retried by `rad-sync`
`Executed`	Applied successfully in the cluster
`Failed`	Could not be applied — see `result` for the Kubernetes error

Using the UI

Open Data Sources → Connections → Clusters, select the cluster, and open the Actions tab.

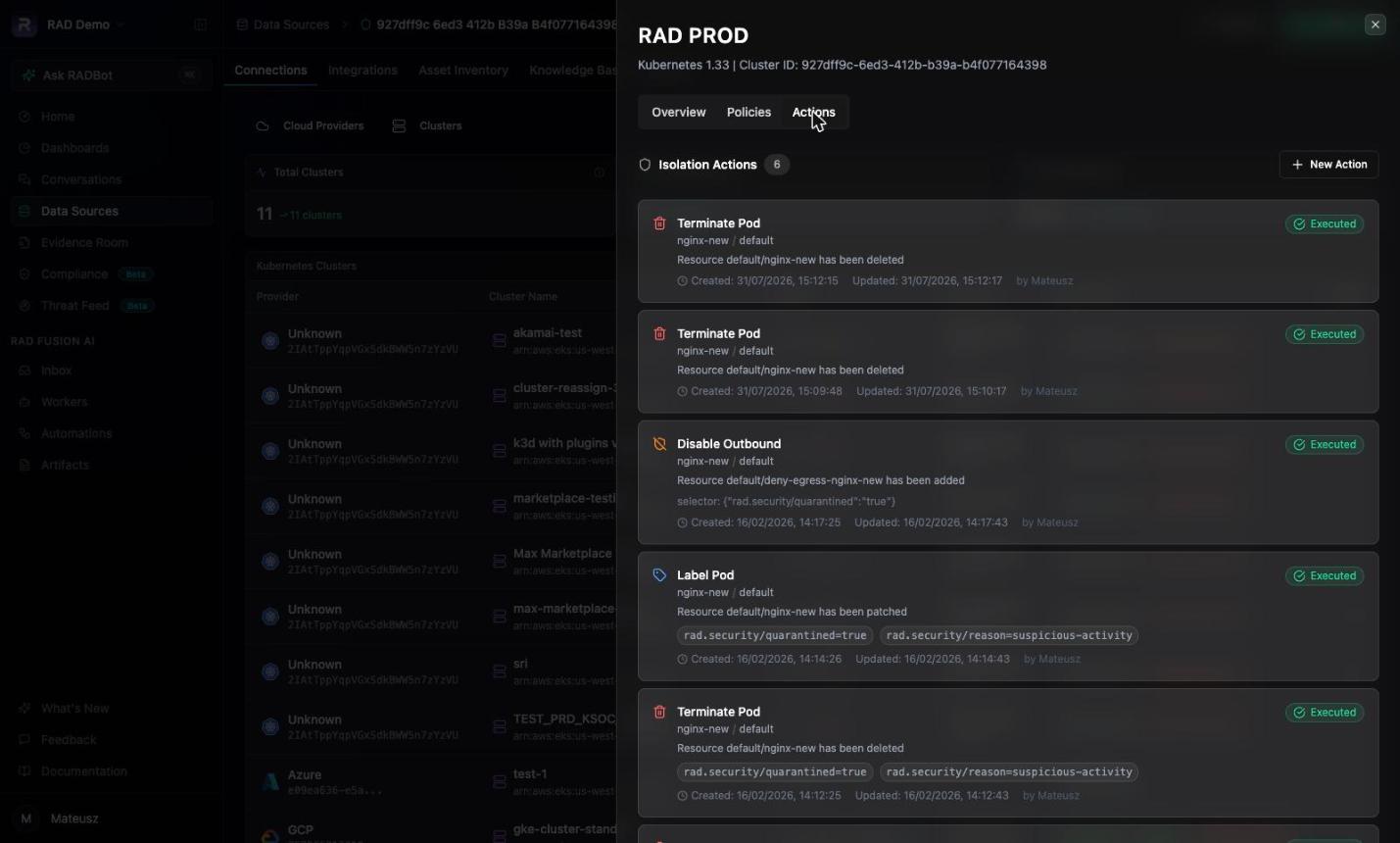

Isolation Actions tab of a cluster showing the action history

The tab lists every isolation action for the cluster, newest first, with its type, target pod and namespace, applied parameters, status, result message, timestamps, and the user who created it. While an action is pending, the list refreshes automatically every few seconds.

Creating an action

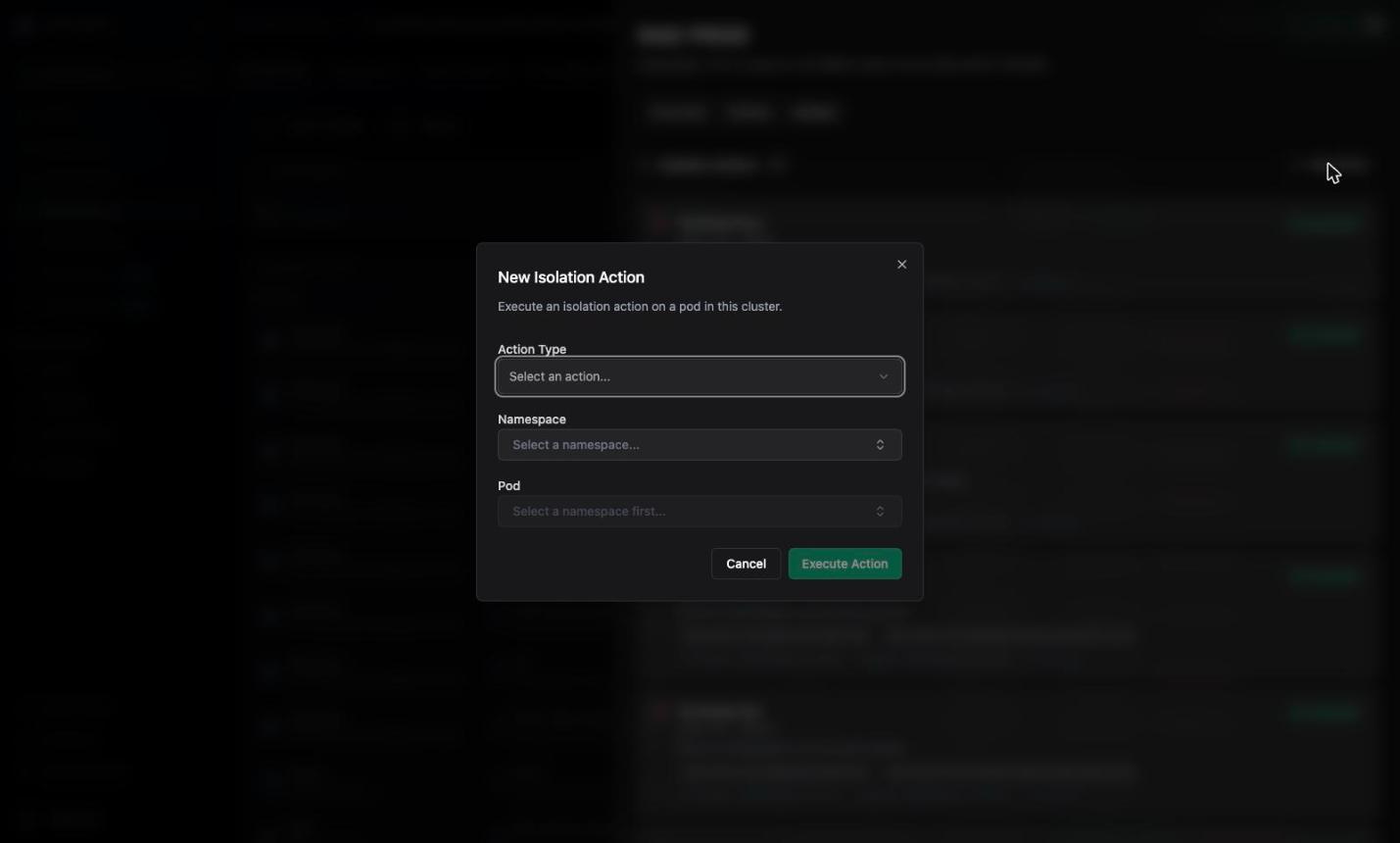

Open the dialog

Select New Action in the top right of the Actions tab.

Choose the action type

Pick Terminate Pod, Disable Outbound Traffic, or Label Pod. A short description of the selected action appears under the field.

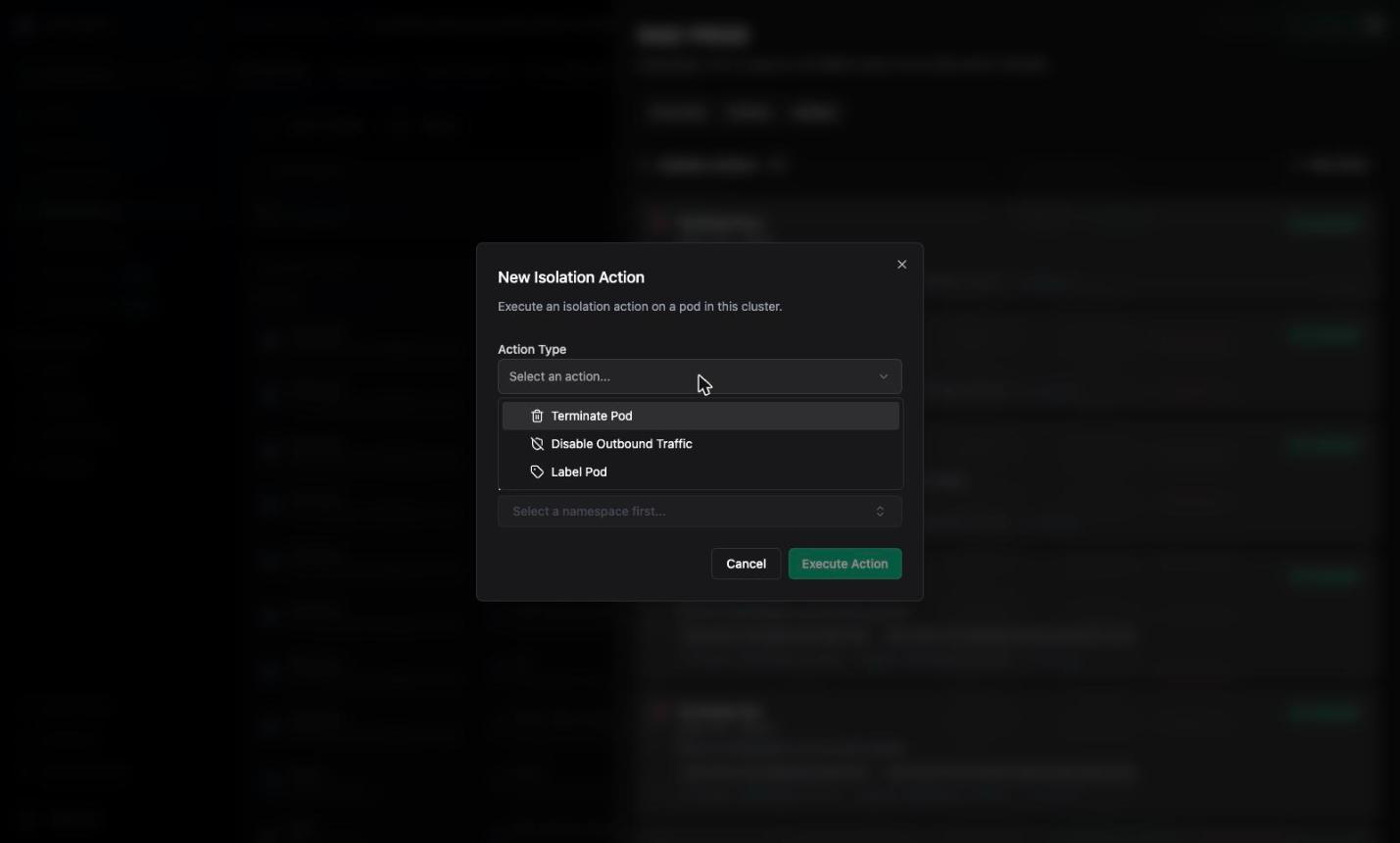

Action type dropdown with the three available action types

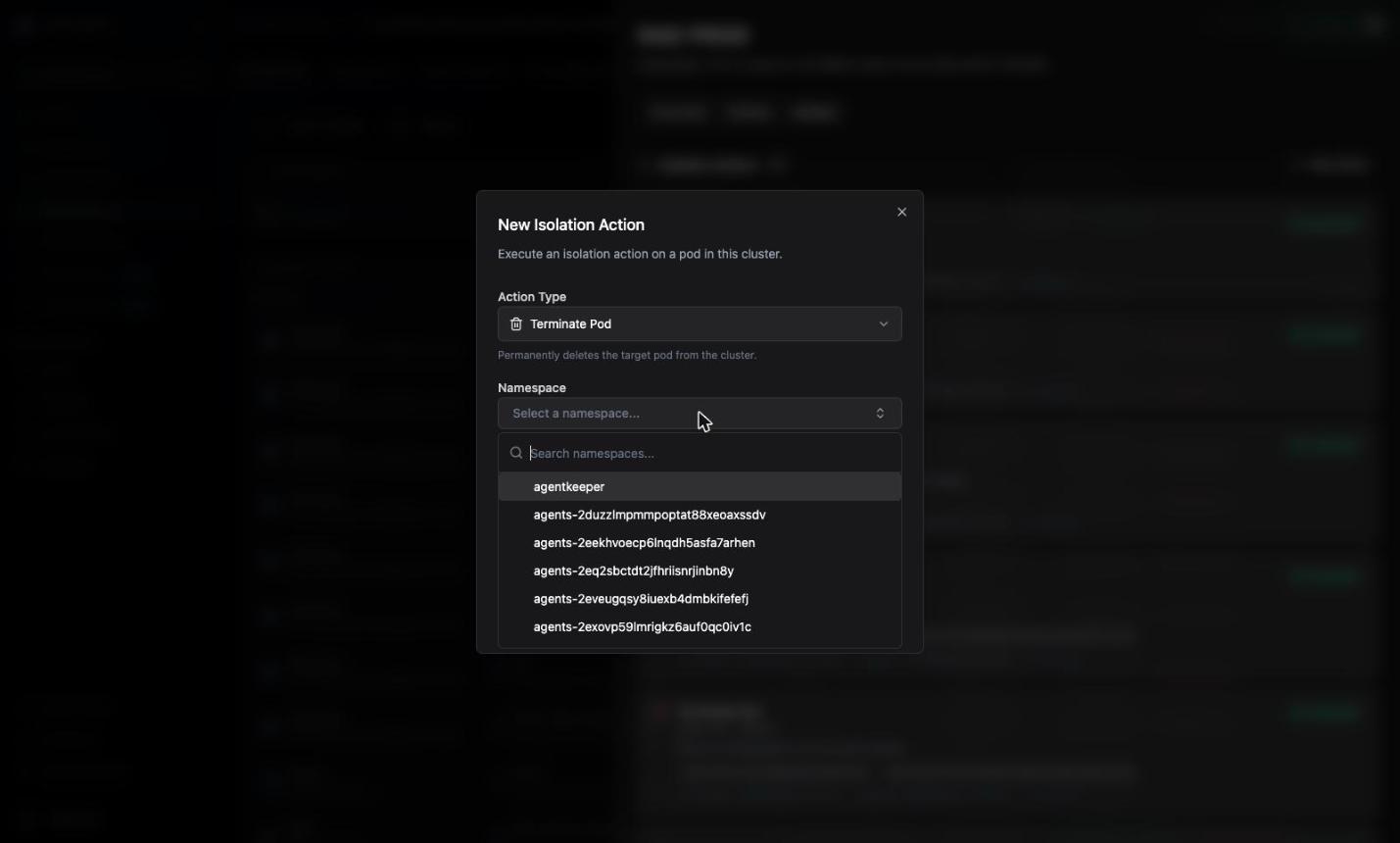

Select the namespace

Namespaces are loaded from the cluster inventory and can be filtered by typing.

Select the pod

The pod list is scoped to the namespace you selected. Changing the namespace resets the pod selection.

Fill in action-specific fields and confirm

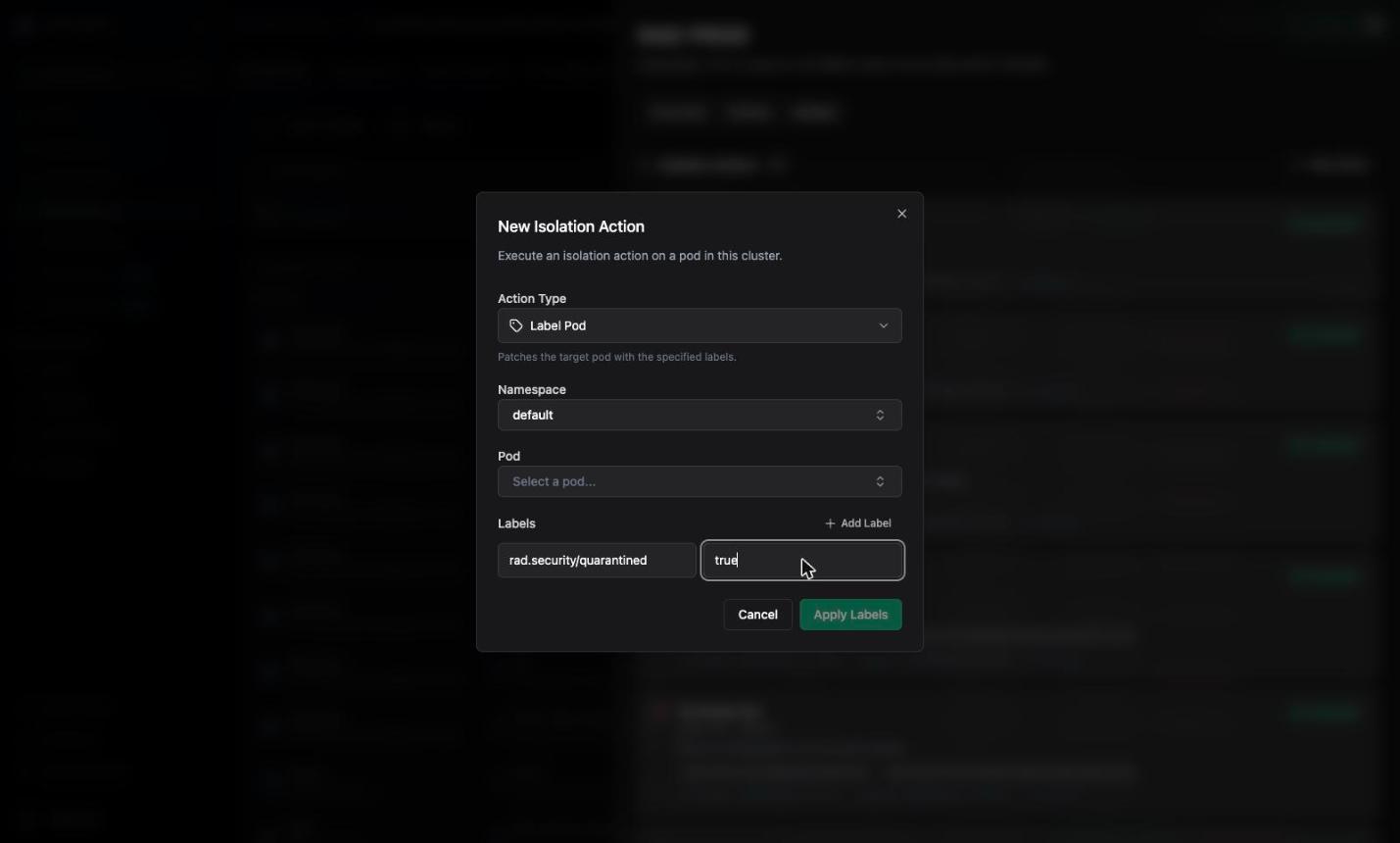

For Label Pod, add one or more key/value pairs. Then confirm with the action button — Terminate Pod, Disable Outbound, or Apply Labels.

The new action appears in the list as Pending and updates to Executed or Failed on its own once rad-sync has processed it.

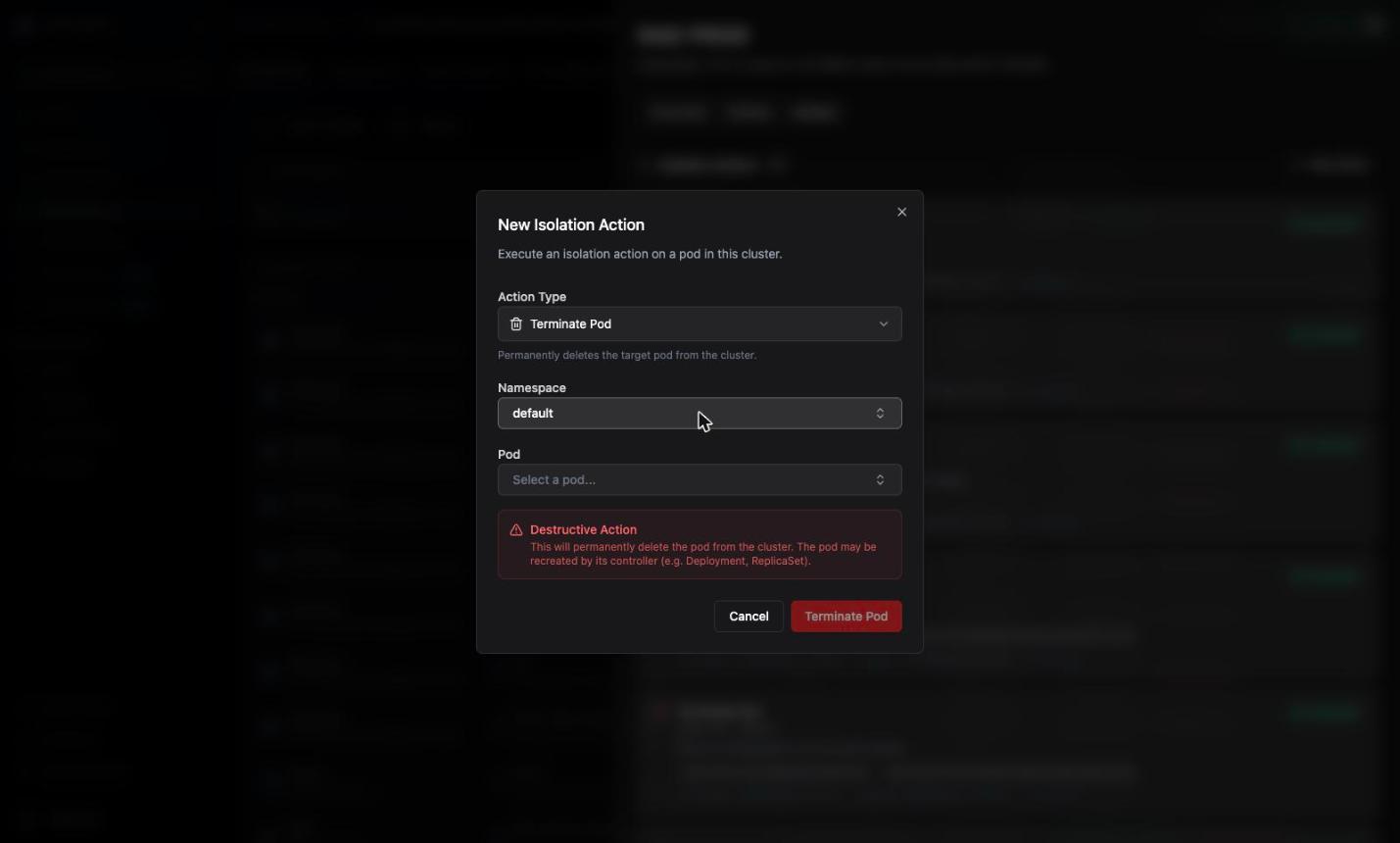

Terminate Pod

Deletes the pod from the cluster.

This is destructive and cannot be undone. If the pod is managed by a controller (Deployment, ReplicaSet, StatefulSet, DaemonSet), the controller recreates it, typically within seconds and with the same image. Use termination to kill a running process immediately, then follow up by scaling down or removing the controller.

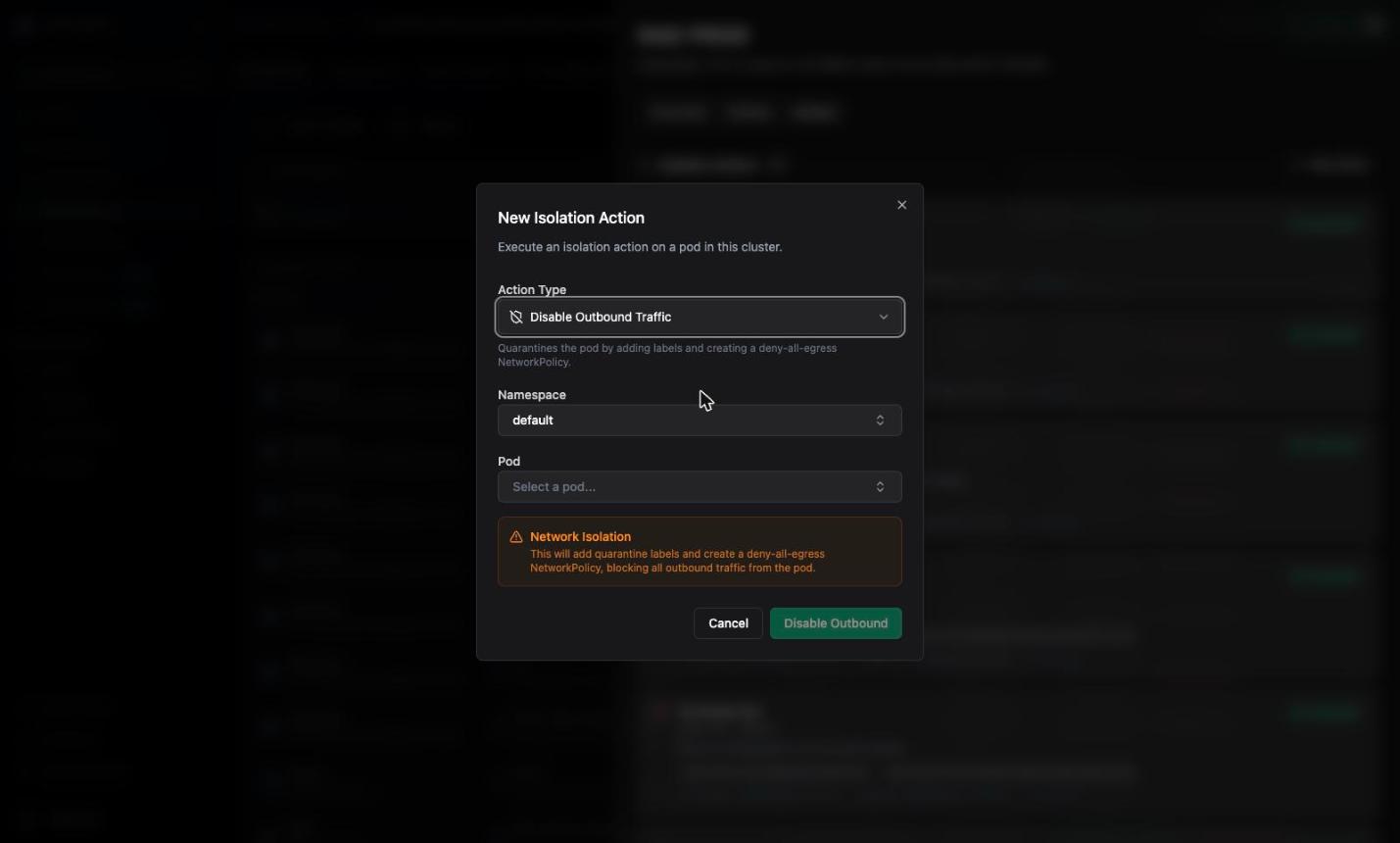

Disable Outbound Traffic

Quarantines the pod so it can no longer initiate outbound connections. A single request expands into two actions:

A label_pod action that applies the quarantine labels to the target pod:

rad.security/quarantined: "true"
rad.security/quarantine_id: "<generated id>"

A disable_outbound action that creates a deny-all-egress NetworkPolicy named deny-egress-<quarantine_id> in the pod’s namespace, selecting exactly those labels:

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: deny-egress-<quarantine_id>
  namespace: <target namespace>
  annotations:
    rad.security/created-by: rad-cluster-action
spec:
  podSelector:
    matchLabels:
      rad.security/quarantined: "true"
      rad.security/quarantine_id: "<quarantine_id>"
  policyTypes:
    - Egress
  egress: []

Because the policy selects a unique quarantine_id, each quarantine is independent — quarantining a second pod in the same namespace does not widen or replace the first policy.

The quarantine follows the labels, not the pod. If the pod is deleted and its controller creates a replacement, the new pod has no quarantine labels and is not covered by the policy. Quarantine the replacement as well, or scale the controller down.

Ingress traffic is not affected. The policy sets policyTypes: [Egress] only, so existing connections into the pod and its Service continue to work. That is deliberate: it keeps the pod reachable for forensics while cutting off command-and-control and data exfiltration.

Label Pod

Merge-patches metadata.labels on the target pod. Existing labels that you do not name are left untouched. Labels are useful to mark a pod for follow-up tooling — for example to make it selectable by your own NetworkPolicies, admission controls, or dashboards:

rad.security/quarantined: "true"
rad.security/reason: "suspicious-activity"

Keys and values must satisfy Kubernetes label syntax; invalid labels are rejected before the action is queued. See Label validation rules.

Removing a quarantine

There is no “undo” action. To lift a quarantine, remove the objects in the cluster directly:

# Remove the deny-all-egress policy
kubectl delete networkpolicy deny-egress-<quarantine_id> -n <namespace>

# Remove the quarantine labels from the pod
kubectl label pod <pod> -n <namespace> \
  rad.security/quarantined- rad.security/quarantine_id-

The quarantine_id is shown on the action entry in the Actions tab and returned in the action’s parameters.

API reference

All endpoints are served from https://api.rad.security.

Authentication

Create an access key in Settings → Access Keys, exchange it for a session token, and send the token as a bearer token. See Managing API Keys.

TOKEN=$(curl -s 'https://api.rad.security/authentication/authenticate' \
  -d '{"access_key_id":"<key id>","secret_key":"<secret key>"}' | jq -r .token)

Create actions

POST /accounts/{account_id}/clusters/{cluster_id}/actions

The request body is an array, so several actions can be queued in one call. Returns 201 Created with the created actions.

curl -X POST \
  "https://api.rad.security/accounts/$ACCOUNT_ID/clusters/$CLUSTER_ID/actions" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '[
        {
          "action_type": "terminate_pod",
          "target_pod_name": "nginx-new",
          "target_namespace": "default"
        }
      ]'

curl -X POST \
  "https://api.rad.security/accounts/$ACCOUNT_ID/clusters/$CLUSTER_ID/actions" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '[
        {
          "action_type": "disable_outbound",
          "target_pod_name": "nginx-new",
          "target_namespace": "default"
        }
      ]'

curl -X POST \
  "https://api.rad.security/accounts/$ACCOUNT_ID/clusters/$CLUSTER_ID/actions" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '[
        {
          "action_type": "label_pod",
          "target_pod_name": "nginx-new",
          "target_namespace": "default",
          "parameters": {
            "labels": {
              "rad.security/quarantined": "true",
              "rad.security/reason": "suspicious-activity"
            }
          }
        }
      ]'

curl -X POST \
  "https://api.rad.security/accounts/$ACCOUNT_ID/clusters/$CLUSTER_ID/actions" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '[
        {
          "action_type": "label_pod",
          "target_pod_name": "api-7d9f",
          "target_namespace": "payments",
          "parameters": { "labels": { "rad.security/reason": "triage" } }
        },
        {
          "action_type": "disable_outbound",
          "target_pod_name": "api-7d9f",
          "target_namespace": "payments"
        }
      ]'

Request fields

Field	Type	Required	Description
`action_type`	string	yes	`terminate_pod`, `disable_outbound`, or `label_pod`
`target_pod_name`	string	yes	Name of the pod to act on
`target_namespace`	string	yes	Namespace of the pod
`parameters`	object	for `label_pod`	Action parameters. `label_pod` requires `parameters.labels` — a non-empty map of string keys to string values

Response

[
  {
    "id": "ca-2rF9xQ8mS1kLp7vTn3JcYwZ0aBd",
    "cluster_id": "927dff9c-6ed3-412b-b39a-b4f077164398",
    "account_id": "2IAtTppYqpVGxSdkBWW5n7zYzVU",
    "action_type": "terminate_pod",
    "status": "Pending",
    "target_pod_name": "nginx-new",
    "target_namespace": "default",
    "parameters": {},
    "created_by": "b1f1c6d2-8f5a-4a0e-9d3e-1c2f4a6b8d0e",
    "created_at": "2026-07-31T15:12:15.482Z",
    "updated_at": "2026-07-31T15:12:15.482Z"
  }
]

A single disable_outbound request returns two action objects — the label_pod action that applies the quarantine labels and the disable_outbound action that creates the NetworkPolicy. Both must reach Executed for the pod to be quarantined. The generated quarantine_id is in the parameters of both.

List actions

GET /accounts/{account_id}/clusters/{cluster_id}/actions

Returns every action for the cluster, newest first.

curl "https://api.rad.security/accounts/$ACCOUNT_ID/clusters/$CLUSTER_ID/actions" \
  -H "Authorization: Bearer $TOKEN" | jq .

{
  "entries": [
    {
      "id": "ca-2rF9xQ8mS1kLp7vTn3JcYwZ0aBd",
      "cluster_id": "927dff9c-6ed3-412b-b39a-b4f077164398",
      "account_id": "2IAtTppYqpVGxSdkBWW5n7zYzVU",
      "action_type": "terminate_pod",
      "status": "Executed",
      "target_pod_name": "nginx-new",
      "target_namespace": "default",
      "parameters": {},
      "result": "Resource default/nginx-new has been deleted",
      "created_by": "b1f1c6d2-8f5a-4a0e-9d3e-1c2f4a6b8d0e",
      "created_at": "2026-07-31T15:12:15.482Z",
      "updated_at": "2026-07-31T15:12:17.913Z"
    }
  ],
  "page_count": 1,
  "total_count": 1,
  "page": 1,
  "page_size": 1
}

Get an action

GET /accounts/{account_id}/clusters/{cluster_id}/actions/{action_id}

Use this to poll a single action until it leaves Pending.

curl "https://api.rad.security/accounts/$ACCOUNT_ID/clusters/$CLUSTER_ID/actions/$ACTION_ID" \
  -H "Authorization: Bearer $TOKEN" | jq '.status, .result'

Action object

Field	Type	Description
`id`	string	Action ID, prefixed with `ca-`
`cluster_id`	string	Target cluster
`account_id`	string	Owning account
`action_type`	string	`terminate_pod`, `disable_outbound`, or `label_pod`
`status`	string	`Pending`, `Executed`, or `Failed`
`target_pod_name`	string	Pod the action was created for
`target_namespace`	string	Namespace of the pod
`parameters`	object	Action parameters — `labels` for `label_pod`, `quarantine_id` for `disable_outbound`
`result`	string	Message reported by `rad-sync` after execution; the Kubernetes error when `Failed`
`created_by`	string	Identity that created the action
`created_at`	string	RFC 3339 timestamp
`updated_at`	string	RFC 3339 timestamp of the last status change

Validation rules

Requests are validated before anything is queued. A rejected request returns 400 and creates no actions — including the other entries in the same batch.

Condition	Error
Unknown `action_type`	`invalid action_type: must be one of terminate_pod, disable_outbound, label_pod`
Missing `target_pod_name`	Invalid input on field `target_pod_name`
Missing `target_namespace`	Invalid input on field `target_namespace`
`label_pod` without `parameters.labels`	Invalid input on field `parameters.labels`
Non-string label value	Invalid input on field `parameters.labels.<key>`
Label key or value breaking Kubernetes syntax	Invalid input describing the offending key

Validation does not check that the pod exists. An action targeting a missing pod is accepted, then reported as Failed by rad-sync with the Kubernetes “not found” error.

Label validation rules

Element	Rule
Key name segment	1–63 characters; alphanumerics, `-`, `_`, `.`; must start and end with an alphanumeric
Key prefix (optional, before `/`)	Valid DNS subdomain, at most 253 characters — for example `rad.security/quarantined`
Value	At most 63 characters, same character set as the key name segment; may be empty
Label map	Must contain at least one entry

Troubleshooting

The action stays Pending

The cluster has not picked it up yet. Check the Overview tab of the cluster details panel: the sync plugin must be listed and healthy, and the cluster’s Last seen timestamp should be recent.The default poll interval is 60 seconds, so allow at least a minute. If the plugin is not running, or the cluster has lost connectivity to api.rad.security on port 443, actions queue up and execute once it reconnects.

Failed: pods ... not found

The pod no longer exists under that name in that namespace — it was already deleted, or it is controller-managed and was recreated with a new name. Refresh the pod list and create the action against the current pod name.

Failed: is forbidden

The rad-sync service account is missing the RBAC permission for the operation. Confirm the rad-sync ClusterRole grants delete/patch on pods and create on networkpolicies (see Prerequisites), and upgrade the rad-plugins Helm release if the chart predates these rules.

disable_outbound reports Executed but traffic still flows

The NetworkPolicy was created, but nothing enforces it. Verify your CNI implements NetworkPolicy, then confirm the policy and the pod labels line up:

kubectl get networkpolicy deny-egress-<quarantine_id> -n <namespace> -o yaml
kubectl get pod <pod> -n <namespace> --show-labels

Both quarantine labels must be present on the pod. If the label_pod half of the pair failed, the policy selects nothing.

The terminated pod came back

Expected when a controller owns the pod. Terminating a pod stops the running process; the Deployment or ReplicaSet then schedules a replacement. Scale the controller to zero, or delete it, to keep the workload down.

403 or 401 from the API

Session tokens are short-lived — re-authenticate to get a fresh token. Creating actions requires modify permission on the account; listing them requires read.

Next Steps

Kubernetes Setup

Connect a cluster and install the RAD plugins.

rad-sync

The plugin that applies isolation actions in your cluster.

Managing API Keys

Create the access key used to call the Cluster Actions API.

Runtime Security

Detect the behavior that warrants an isolation action.

Getting Started

Platform

Data Sources

Security & Compliance

Resources

Overview

Prerequisites

How execution works

Action statuses

Using the UI

Creating an action

Terminate Pod

Disable Outbound Traffic

Label Pod

Removing a quarantine

API reference

Authentication

Create actions

Request fields

Response

List actions

Get an action

Action object

Validation rules

Label validation rules

Troubleshooting

Next Steps

Kubernetes Setup

rad-sync

Managing API Keys

Runtime Security

​Overview

​Prerequisites

​How execution works

​Action statuses

​Using the UI

​Creating an action

​Terminate Pod

​Disable Outbound Traffic

​Label Pod

​Removing a quarantine

​API reference

​Authentication

​Create actions

​Request fields

​Response

​List actions

​Get an action

​Action object

​Validation rules

​Label validation rules

​Troubleshooting

​Next Steps

Kubernetes Setup

rad-sync

Managing API Keys

Runtime Security

Overview

Prerequisites

How execution works

Action statuses

Using the UI

Creating an action

Terminate Pod

Disable Outbound Traffic

Label Pod

Removing a quarantine

API reference

Authentication

Create actions

Request fields

Response

List actions

Get an action

Action object

Validation rules

Label validation rules

Troubleshooting

Next Steps
